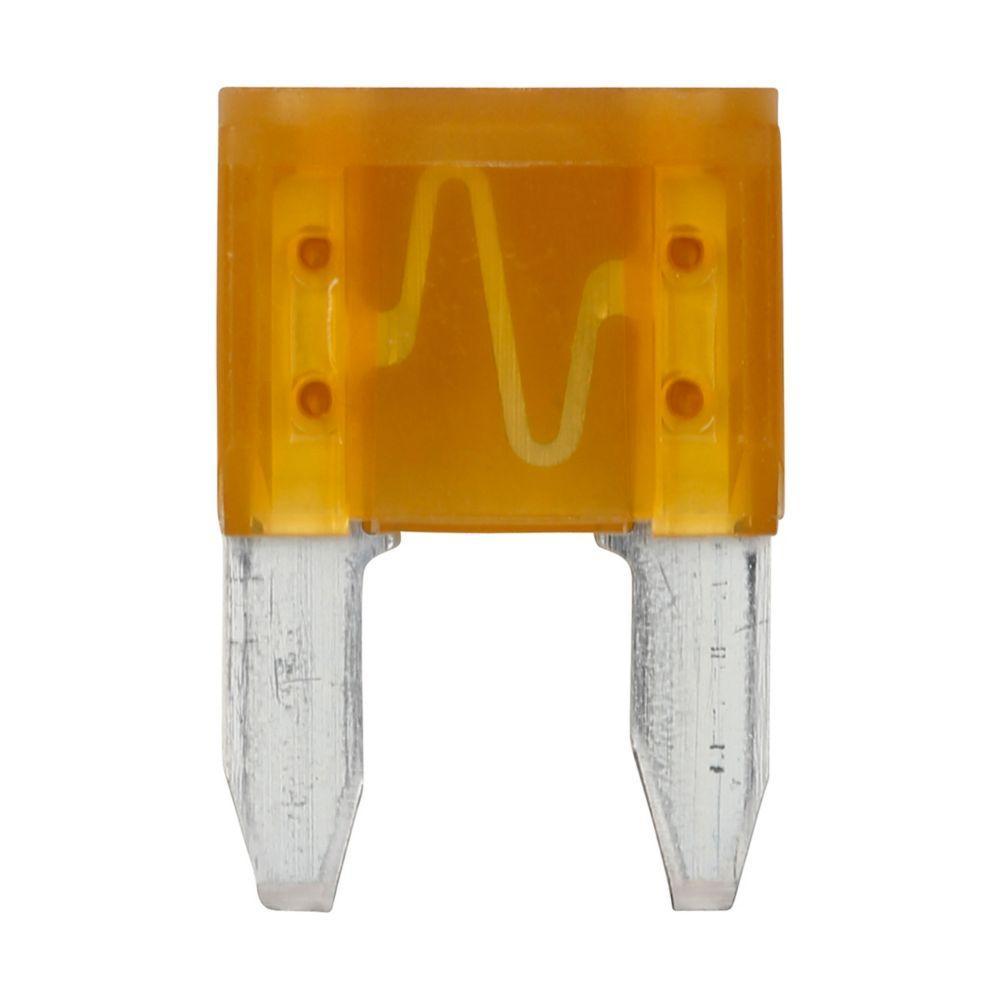

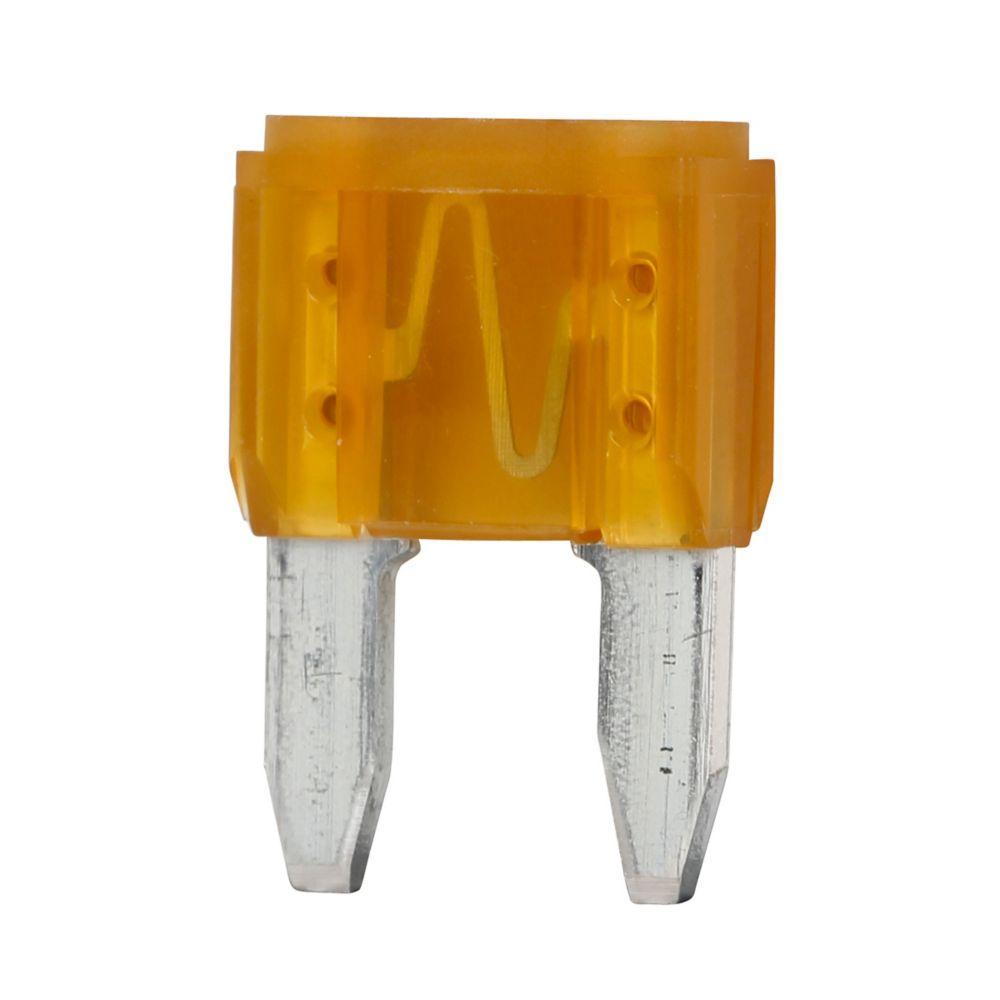

Automotive blade fuses are the industry standard - used in most domestic and imported cars today. All Bussmann series blade fuses meet or exceed OEM and SAE standards. The easyID indicating blade fuses use LED technology making it easier to spot blown fuses in panels tucked in dark locations.
Bussmann Miniature Fuse, Fast Acting, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 5, Voltage Rating A, V AC/DC 32, 1 kA at 32 V AC/DC Interrupt, Class, Frequency Rating, Speed, Blade Terminal, Mounting Type, Element, 3/4 Length, Width in, in 7/16, 5/32 D, Diameter in, Plastic, Color
| Amperage Rating | : | 5 A |
| Color | : | Tan |
| Depth | : | 5/32 in |
| Element | : | Single |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 1 kA at 32 VAC/VDC |
| Length | : | 3/4 in |
| Material | : | Plastic |
| Mounting Type | : | Holder |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | ATM |
| Terminal Type | : | Blade |
| Type | : | Fast Acting |
| Voltage Rating | : | 32 V AC/DC |
| Width | : | 7/16 in |
